warpos::Scheduler Class Reference

Base class implementation of the scheduler. More...

#include <Scheduler.h>

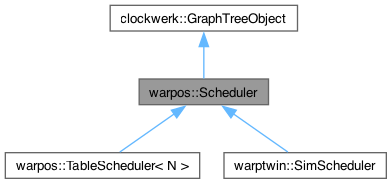

Inheritance diagram for warpos::Scheduler:

Public Member Functions
	Scheduler ()
	Constructor for the scheduler.
virtual int16	startup ()
	Function to start and configure the scheduler.
virtual int16	step (const clockwerk::Time &step_val)
	Function to step the scheduler by a single step.
virtual int16	run ()
	Function to run the scheduler until pre-determined end conditions identified/calculated by the scheduler.
virtual int16	registerApp (App &app, int16 slot)
	Function to register apps with the scheduler. Depending on the scheduler implementation these may be unused.
virtual int16	unregisterApp (int16 slot)
	Function to unregister a certain schedule slot.
void	terminate ()
	Terminate the scheduler.
bool	isTerminated ()
	Get whether scheduler is terminated.
void	setExecutive (FlightExecutive *exc)
	Set the flight executive for the scheduler.
Public Member Functions inherited from clockwerk::GraphTreeObject
	GraphTreeObject (const char *gt_nme="", GraphTreeObject **storage_array=nullptr, uint32 storage_size=0)
	Name-based constructor for GraphTreeObject which will have no children by default.
virtual	~GraphTreeObject ()
	Destructor.
GraphTreeObject *	parent ()
	Functions to get object's parent/children.
GraphTreeObject **	children ()
GraphTreeObject *	childAtIndex (uint8 i) const
int16	parent (GraphTreeObject *new_parent)
	Function to assign the node's parent via pointer.
int16	parent (GraphTreeObject &new_parent)
	Function to assign the node's parent via reference.
uint8	nChildren () const
	Getters for number of children and descendants.
uint16	nDescendants () const
uint8	capacity () const
const char *	name () const
	Getter and setter for object name.
int16	name (const char *new_name)
uint8	rank ()
	Getter for the object rank.
int8	type ()
	Function to indicate type – -1 by default unless implemented downstream.
bool	loggable ()
	Getter for object logability flag – note no setter because should only be set by this or a derived class in its definition.
GraphTreeObject *	getRootDataPointer ()
	Get the pointer to the highest object in the graph tree.
virtual int16	str (char *output, size_t size) const
	Get object represented as string.
virtual int16	fromStr (const char *val)
	Set value of graphtreeobject from string.

Protected Attributes
bool	_is_terminated = false
	Flag to indicate whether the scheduler is terminated.
FlightExecutive *	_exc_ptr
	Pointer to the executive which may optionally be registered with scheduler.
Protected Attributes inherited from clockwerk::GraphTreeObject
GraphTreeObject *	_parent = nullptr
GraphTreeObject **	_children_ptr = nullptr
uint32	_max_num_children = 0
uint16	_num_descendants = 0
char	_name [MAXIMUM_NAME_CHARS] = ""
	String name for object.
uint8	_num_children = 0
	Number of direct children of the tree (not including the tree itself).
uint8	_rank = 0
int8	_graph_tree_type = BASE_GRAPH_TREE
	Variable to store graph tree object type.
bool	_loggable = false
	Variable to indicate whether the selected object is loggable. Set to false by default.
uint32	_index = 0
	Index pointing to the next write location for the graph tree children.

Additional Inherited Members
Protected Member Functions inherited from clockwerk::GraphTreeObject
int16	_setStorage (GraphTreeObject **storage_array, uint8 storage_size)
	Getter for object's string address.
void	_recalculateDescendants ()
	Function to recursively re-calculate the number of descendants of a given node on the tree.
void	_recalculateRank ()
	Function to recursively re-calculate the rank of a given node on the tree.
int16	_addChild (GraphTreeObject *child)
	Function to decompose a string into a series of substrings via indexing.
int16	_removeChild (GraphTreeObject *child)
	Function to remove a child from the graph node's children.

Detailed Description

Base class implementation of the scheduler.

This class is a base implementation of scheduler. It is an empty base class and cannot be used without implementation in a derived child class.

The scheduler is the engine that runs simulations and software. It defines the sequence and method of execution for models, tasks, monitors, and events and is tasked with their actual execution. It also manages faults and errors arising from them.

Constructor & Destructor Documentation

Scheduler()

warpos::Scheduler::Scheduler

(

)

Constructor for the scheduler.

Member Function Documentation

isTerminated()

bool warpos::Scheduler::isTerminated ( )

inline

Get whether scheduler is terminated.

registerApp()

int16 warpos::Scheduler::registerApp ( App & app, int16 slot )

virtual

Function to register apps with the scheduler. Depending on the scheduler implementation these may be unused.

Parameters

app	The app to register
slot	The slot to register the app to

Returns

Error code corresponding to success/failure

Reimplemented in warpos::TableScheduler< N >, and warptwin::SimScheduler.

run()

int16 warpos::Scheduler::run ( )

virtual

Function to run the scheduler until pre-determined end conditions identified/calculated by the scheduler.

Returns

Error code corresponding to success/failure

Note

The scheduler MUST define stopping conditions. Otherwise, will run indefinitely

Reimplemented in warpos::TableScheduler< N >, and warptwin::SimScheduler.

setExecutive()

void warpos::Scheduler::setExecutive ( FlightExecutive * exc )

inline

Set the flight executive for the scheduler.

Parameters

exc	The flight executive

startup()

int16 warpos::Scheduler::startup ( )

virtual

Function to start and configure the scheduler.

Returns

Error code corresponding to success/failure

Reimplemented in warpos::TableScheduler< N >, and warptwin::SimScheduler.

step()

int16 warpos::Scheduler::step ( const clockwerk::Time & step_val )

virtual

Function to step the scheduler by a single step.

Returns

Error code corresponding to success/failure

Reimplemented in warpos::TableScheduler< N >, and warptwin::SimScheduler.

terminate()

void warpos::Scheduler::terminate ( )

inline

Terminate the scheduler.

unregisterApp()

int16 warpos::Scheduler::unregisterApp ( int16 slot )

virtual

Function to unregister a certain schedule slot.

Parameters

slot	Slot to unregister

Returns

Error code corresponding to success/failure

Reimplemented in warpos::TableScheduler< N >.

Member Data Documentation

_exc_ptr

FlightExecutive* warpos::Scheduler::_exc_ptr

protected

Pointer to the executive which may optionally be registered with scheduler.

_is_terminated

bool warpos::Scheduler::_is_terminated = false

protected

Flag to indicate whether the scheduler is terminated.

---

The documentation for this class was generated from the following files:

• /Users/mickey/Documents/Projects/warptwin/warpos/src/flight/Scheduler.h
• /Users/mickey/Documents/Projects/warptwin/warpos/src/flight/Scheduler.cpp
