clockwerk::GraphTreeObject Class Reference

Base class for object organization. More...

#include <GraphTreeObject.h>

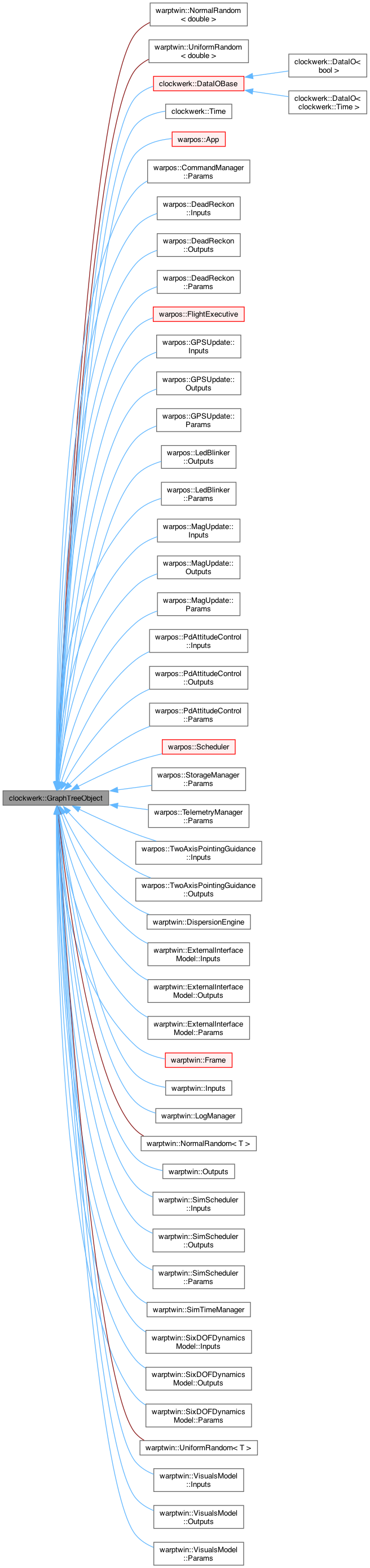

Inheritance diagram for clockwerk::GraphTreeObject:

Public Member Functions
	GraphTreeObject (const char *gt_nme="", GraphTreeObject **storage_array=nullptr, uint32 storage_size=0)
	Name-based constructor for GraphTreeObject which will have no children by default.
virtual	~GraphTreeObject ()
	Destructor.
GraphTreeObject *	parent ()
	Functions to get object's parent/children.
GraphTreeObject **	children ()
GraphTreeObject *	childAtIndex (uint8 i) const
int16	parent (GraphTreeObject *new_parent)
	Function to assign the node's parent via pointer.
int16	parent (GraphTreeObject &new_parent)
	Function to assign the node's parent via reference.
uint8	nChildren () const
	Getters for number of children and descendants.
uint16	nDescendants () const
uint8	capacity () const
const char *	name () const
	Getter and setter for object name.
int16	name (const char *new_name)
uint8	rank ()
	Getter for the object rank.
int8	type ()
	Function to indicate type – -1 by default unless implemented downstream.
bool	loggable ()
	Getter for object logability flag – note no setter because should only be set by this or a derived class in its definition.
GraphTreeObject *	getRootDataPointer ()
	Get the pointer to the highest object in the graph tree.
virtual int16	str (char *output, size_t size) const
	Get object represented as string.
virtual int16	fromStr (const char *val)
	Set value of graphtreeobject from string.

Protected Member Functions
int16	_setStorage (GraphTreeObject **storage_array, uint8 storage_size)
	Getter for object's string address.
void	_recalculateDescendants ()
	Function to recursively re-calculate the number of descendants of a given node on the tree.
void	_recalculateRank ()
	Function to recursively re-calculate the rank of a given node on the tree.
int16	_addChild (GraphTreeObject *child)
	Function to decompose a string into a series of substrings via indexing.
int16	_removeChild (GraphTreeObject *child)
	Function to remove a child from the graph node's children.

Protected Attributes
GraphTreeObject *	_parent = nullptr
GraphTreeObject **	_children_ptr = nullptr
uint32	_max_num_children = 0
uint16	_num_descendants = 0
char	_name [MAXIMUM_NAME_CHARS] = ""
	String name for object.
uint8	_num_children = 0
	Number of direct children of the tree (not including the tree itself).
uint8	_rank = 0
int8	_graph_tree_type = BASE_GRAPH_TREE
	Variable to store graph tree object type.
bool	_loggable = false
	Variable to indicate whether the selected object is loggable. Set to false by default.
uint32	_index = 0
	Index pointing to the next write location for the graph tree children.

Detailed Description

Base class for object organization.

This file defines a base class for data organization into a format we're calling here a "graph tree". The graph tree is set up to connect a single parent to any number of children, which may be done upon construction or at runtime. Graph trees allow connections between any number of inherited objects and their parents/children, allowing for recursive math and search functionality. In essence, the class is a doubly linked list with multiple children and search functionality.

                    Parent
                       |
    ---------------------------------------
    |           |             |           |
 Child 1      Child 2       Child 3     Child 4

Also, note that trees objects are entirely independent of their position in that tree, so a child can be treated as if it were root in the case where a local search should be performed.

String Address Functionality String addressing is one of the most critical functions of the graph tree. It allows for easy access to data, in addition to search and write functions. String addresses are constructed from the names of individual objects on the tree, separated by a delimiter defined in this file (a period by default). So a standard string address could look like:

.firstObj.secondObj.thirdObj.otherThing

which would indicate four levels of heirarchy on the tree, with otherThing being the furthest down on the tree. The object at the location otherThing can be accessed by requesting the string address.

Graph tree has the following restrictions driven by data size: Number of children – restricted by variable size and uint8 size Number of descendants – restricted by uint16 size

NOTE: As of the Great ModelSpace Restructure of July 2025, the GraphTreeObject is configured to allow for a resizing by pointing to an external array. This makes the GraphTreeObject flexible on size, which is necessary to ensure it works well in embedded and simulation environments

Constructor & Destructor Documentation

GraphTreeObject()

clockwerk::GraphTreeObject::GraphTreeObject	(	const char *	gt_nme = "",
		GraphTreeObject **	storage_array = nullptr,
		uint32	storage_size = 0 )

Name-based constructor for GraphTreeObject which will have no children by default.

~GraphTreeObject()

virtual clockwerk::GraphTreeObject::~GraphTreeObject ( )

inlinevirtual

Destructor.

Member Function Documentation

_addChild()

int16 clockwerk::GraphTreeObject::_addChild ( GraphTreeObject * child )

protected

Function to decompose a string into a series of substrings via indexing.

Parameters

address

The address to be decomposed

Returns

A vector of strings containing each delimeter-separated substring

Function to add a child to the graph tree object

Parameters

child

A pointer to the graph tree object to add to the tree

Returns

An error code corresponding to success/failure

_recalculateDescendants()

void clockwerk::GraphTreeObject::_recalculateDescendants ( )

protected

Function to recursively re-calculate the number of descendants of a given node on the tree.

_recalculateRank()

void clockwerk::GraphTreeObject::_recalculateRank ( )

protected

Function to recursively re-calculate the rank of a given node on the tree.

_removeChild()

int16 clockwerk::GraphTreeObject::_removeChild ( GraphTreeObject * child )

protected

Function to remove a child from the graph node's children.

Parameters

child

The child to remove

Returns

Success/fail error code based on whether the child is present

_setStorage()

int16 clockwerk::GraphTreeObject::_setStorage ( GraphTreeObject ** storage_array, uint8 storage_size )

protected

Getter for object's string address.

Parameters

add_out

Implicit return of the string address for the object

Set the storage for the GraphTreeObject from the default (none) to a new source

Parameters

storage_array	An array of GraphTreeObject which will store the children of this object
storage_size	The number of values which may be held by storage_array

Note

Assumes internal array is nullptr/no children. Returns error otherwise

capacity()

uint8 clockwerk::GraphTreeObject::capacity ( ) const

inline

childAtIndex()

GraphTreeObject * clockwerk::GraphTreeObject::childAtIndex ( uint8 i ) const

inline

children()

GraphTreeObject ** clockwerk::GraphTreeObject::children ( )

inline

fromStr()

virtual int16 clockwerk::GraphTreeObject::fromStr ( const char * val )

inlinevirtual

Set value of graphtreeobject from string.

Parameters

val	The value to set object from

Returns

Error code corresponding to success/failure

Note

Should be set in derived class – this one is useless.

Reimplemented in clockwerk::Time.

getRootDataPointer()

GraphTreeObject * clockwerk::GraphTreeObject::getRootDataPointer

(

)

Get the pointer to the highest object in the graph tree.

Returns

Pointer to the root graph tree object

loggable()

bool clockwerk::GraphTreeObject::loggable ( )

inline

Getter for object logability flag – note no setter because should only be set by this or a derived class in its definition.

name() [1/2]

const char * clockwerk::GraphTreeObject::name ( ) const

inline

Getter and setter for object name.

name() [2/2]

int16 clockwerk::GraphTreeObject::name

(

const char *

new_name

)

nChildren()

uint8 clockwerk::GraphTreeObject::nChildren ( ) const

inline

Getters for number of children and descendants.

nDescendants()

uint16 clockwerk::GraphTreeObject::nDescendants ( ) const

inline

parent() [1/3]

GraphTreeObject * clockwerk::GraphTreeObject::parent ( )

inline

Functions to get object's parent/children.

parent() [2/3]

int16 clockwerk::GraphTreeObject::parent

(

GraphTreeObject &

new_parent

)

Function to assign the node's parent via reference.

Parameters

new_parent

The new parent to assign the node to

Returns

Error code corresponding to success/failure

Note

This function is the only method to ADD or REMOVE a node from a tree. To add, pass the address to a GraphTreeObject to this function. To remove, pass a nullptr. Note that parents for objects on an existing tree can be reassigned

parent() [3/3]

int16 clockwerk::GraphTreeObject::parent

(

GraphTreeObject *

new_parent

)

Function to assign the node's parent via pointer.

Parameters

new_parent

The new parent to assign the node to

Returns

Error code corresponding to success/failure

Note

This function is the only method to ADD or REMOVE a node from a tree. To add, pass the address to a GraphTreeObject to this function. To remove, pass a nullptr. Note that parents for objects on an existing tree can be reassigned

rank()

uint8 clockwerk::GraphTreeObject::rank ( )

inline

Getter for the object rank.

str()

virtual int16 clockwerk::GraphTreeObject::str ( char * output, size_t size ) const

inlinevirtual

Get object represented as string.

Parameters

output	The output string
size	The maximum size of the variable to write string to

Note

Should be set in derived class

Reimplemented in clockwerk::Time.

type()

int8 clockwerk::GraphTreeObject::type ( )

inline

Function to indicate type – -1 by default unless implemented downstream.

Returns

Int indicating frame type – unimplemented always -1

Member Data Documentation

_children_ptr

GraphTreeObject** clockwerk::GraphTreeObject::_children_ptr = nullptr

protected

Pointers to the object's children – nominally empty but can be resized based on need, due to the fact that GraphTreeObject is primarily used to feed other classes

_graph_tree_type

int8 clockwerk::GraphTreeObject::_graph_tree_type = BASE_GRAPH_TREE

protected

Variable to store graph tree object type.

_index

uint32 clockwerk::GraphTreeObject::_index = 0

protected

Index pointing to the next write location for the graph tree children.

_loggable

bool clockwerk::GraphTreeObject::_loggable = false

protected

Variable to indicate whether the selected object is loggable. Set to false by default.

_max_num_children

uint32 clockwerk::GraphTreeObject::_max_num_children = 0

protected

_name

char clockwerk::GraphTreeObject::_name[MAXIMUM_NAME_CHARS] = ""

protected

String name for object.

_num_children

uint8 clockwerk::GraphTreeObject::_num_children = 0

protected

Number of direct children of the tree (not including the tree itself).

_num_descendants

uint16 clockwerk::GraphTreeObject::_num_descendants = 0

protected

Total number of descendants (includes children of children) of the tree, again not including the tree itself

_parent

GraphTreeObject* clockwerk::GraphTreeObject::_parent = nullptr

protected

Pointer to the object's parent – should be null if the object is the root. Is set to null by default

_rank

uint8 clockwerk::GraphTreeObject::_rank = 0

protected

Rank for how far down on the graph tree the object is – starts at zero and maxes out at 255 via variable size

---
