clockwerk::DataIOBase Class Reference

#include <DataIOBase.h>

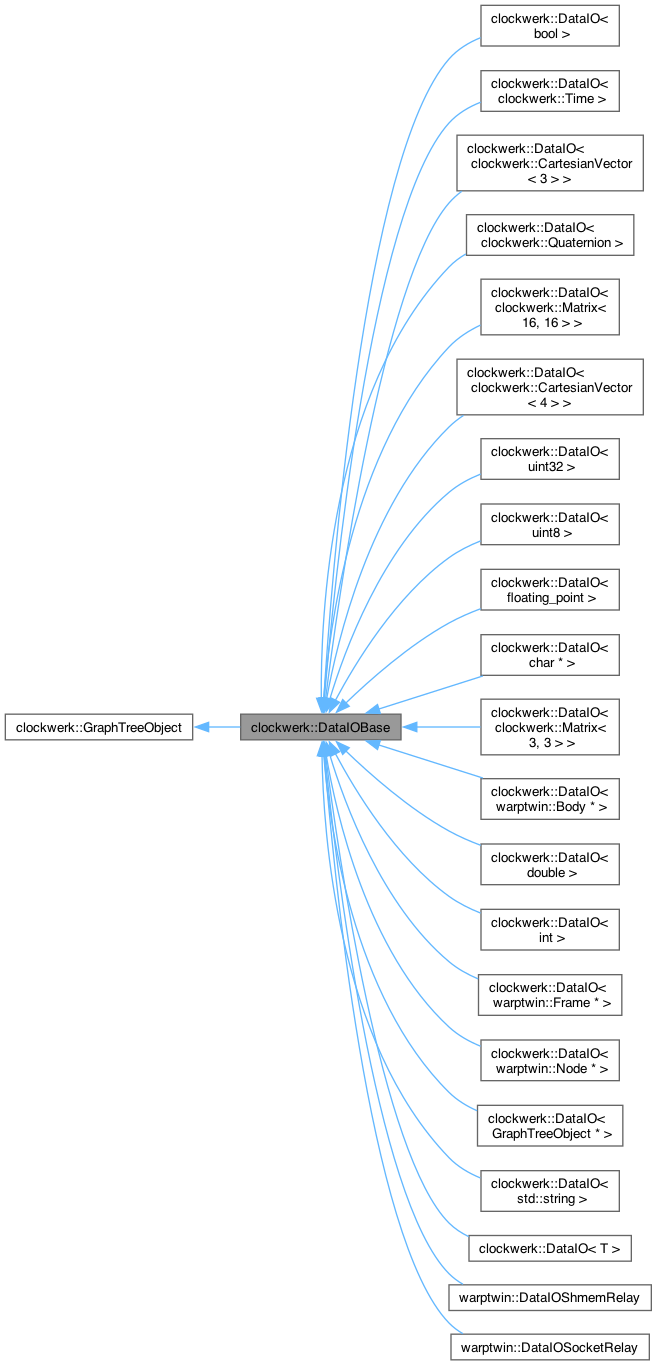

Inheritance diagram for clockwerk::DataIOBase:

Public Member Functions
	DataIOBase ()
	Default constructor.
	~DataIOBase ()
virtual int16	syncExternal ()
	Synchronize DataIO to some external source – Socket, shared memory, etc.
virtual int	dataSize ()
	Get the size of the core data held by the object.
void	allowWrite ()
	Functions to manipulate write permissions on DataIO object.
void	blockWrite ()
bool	writeAllowed ()
void	mapTo (DataIOBase &data_source)
	Function to map DataIO object to new upstream data source.
void	resetMap ()
DataIOBase *	dataSource ()
	Access the target to which the DataIO is mapped.
void *	writePtr ()
	Function to write value to mapped location – root data or map.
void *	read () const
	Function to read value from mapped location – root data or map.
uint8	dataType ()
	Function to return the type of data held by the DataIO.
virtual int16	getValueAsString (char *retval, size_t size)
	Return the value held by the DataIO object as a string.
virtual int16	setValueFromString (const char *value)
	Set the value held by the DataIO object from a string.
Public Member Functions inherited from clockwerk::GraphTreeObject
	GraphTreeObject (const char *gt_nme="", GraphTreeObject **storage_array=nullptr, uint32 storage_size=0)
	Name-based constructor for GraphTreeObject which will have no children by default.
virtual	~GraphTreeObject ()
	Destructor.
GraphTreeObject *	parent ()
	Functions to get object's parent/children.
GraphTreeObject **	children ()
GraphTreeObject *	childAtIndex (uint8 i) const
int16	parent (GraphTreeObject *new_parent)
	Function to assign the node's parent via pointer.
int16	parent (GraphTreeObject &new_parent)
	Function to assign the node's parent via reference.
uint8	nChildren () const
	Getters for number of children and descendants.
uint16	nDescendants () const
uint8	capacity () const
const char *	name () const
	Getter and setter for object name.
int16	name (const char *new_name)
uint8	rank ()
	Getter for the object rank.
int8	type ()
	Function to indicate type – -1 by default unless implemented downstream.
bool	loggable ()
	Getter for object logability flag – note no setter because should only be set by this or a derived class in its definition.
GraphTreeObject *	getRootDataPointer ()
	Get the pointer to the highest object in the graph tree.
virtual int16	str (char *output, size_t size) const
	Get object represented as string.
virtual int16	fromStr (const char *val)
	Set value of graphtreeobject from string.

Protected Member Functions
template<typename T>
std::enable_if< std::is_integral< T >::value >::type	_typeID (T var)
	Overloaded functions to identify type held by DataIO.
template<typename T>
std::enable_if< std::is_floating_point< T >::value >::type	_typeID (T var)
template<typename T, long unsigned int N>
void	_typeID (std::array< T, N > var)
template<uint32 R, uint32 C>
void	_typeID (Matrix< R, C > var)
void	_typeID (const GraphTreeObject &var)
void	_typeID (const Time &var)
void	_typeID (void *var)
void	_typeID (int8 var)
void	_typeID (int16 var)
void	_typeID (int32 var)
void	_typeID (int64 var)
void	_typeID (uint8 var)
void	_typeID (uint16 var)
void	_typeID (uint32 var)
void	_typeID (uint64 var)
void	_typeID (char *var)
Protected Member Functions inherited from clockwerk::GraphTreeObject
int16	_setStorage (GraphTreeObject **storage_array, uint8 storage_size)
	Getter for object's string address.
void	_recalculateDescendants ()
	Function to recursively re-calculate the number of descendants of a given node on the tree.
void	_recalculateRank ()
	Function to recursively re-calculate the rank of a given node on the tree.
int16	_addChild (GraphTreeObject *child)
	Function to decompose a string into a series of substrings via indexing.
int16	_removeChild (GraphTreeObject *child)
	Function to remove a child from the graph node's children.

Protected Attributes
DataIOBase *	_data
void *	_data_ptr = nullptr
bool	_writeAllowed
bool	_root
dataio_types_e	_type_id = UNDEFINED
Protected Attributes inherited from clockwerk::GraphTreeObject
GraphTreeObject *	_parent = nullptr
GraphTreeObject **	_children_ptr = nullptr
uint32	_max_num_children = 0
uint16	_num_descendants = 0
char	_name [MAXIMUM_NAME_CHARS] = ""
	String name for object.
uint8	_num_children = 0
	Number of direct children of the tree (not including the tree itself).
uint8	_rank = 0
int8	_graph_tree_type = BASE_GRAPH_TREE
	Variable to store graph tree object type.
bool	_loggable = false
	Variable to indicate whether the selected object is loggable. Set to false by default.
uint32	_index = 0
	Index pointing to the next write location for the graph tree children.

Detailed Description

The Data IO Base class is designed to provide the basic interface of the Data IO class (see documentation in DataIO.hpp) without requiring templating. This implementation is to allow for generic access to Data IO objects without needing to know or declare the template in the resulting class.

Note

The DataIOBase object, while a child of GraphTreeObject, cannot have any children as no space is allocated for them. Therefore it must lie at the end of the tree.

Constructor & Destructor Documentation

DataIOBase()

clockwerk::DataIOBase::DataIOBase ( )

inline

Default constructor.

~DataIOBase()

clockwerk::DataIOBase::~DataIOBase ( )

inline

Member Function Documentation

_typeID() [1/16]

void clockwerk::DataIOBase::_typeID ( char * var )

protected

_typeID() [2/16]

void clockwerk::DataIOBase::_typeID ( const GraphTreeObject & var )

protected

_typeID() [3/16]

void clockwerk::DataIOBase::_typeID ( const Time & var )

protected

_typeID() [4/16]

void clockwerk::DataIOBase::_typeID ( int16 var )

protected

_typeID() [5/16]

void clockwerk::DataIOBase::_typeID ( int32 var )

protected

_typeID() [6/16]

void clockwerk::DataIOBase::_typeID ( int64 var )

protected

_typeID() [7/16]

void clockwerk::DataIOBase::_typeID ( int8 var )

protected

_typeID() [8/16]

template<uint32 R, uint32 C>

void clockwerk::DataIOBase::_typeID ( Matrix< R, C > var )

protected

_typeID() [9/16]

template<typename T, long unsigned int N>

void clockwerk::DataIOBase::_typeID ( std::array< T, N > var )

protected

_typeID() [10/16]

template<typename T>

std::enable_if< std::is_floating_point< T >::value >::type clockwerk::DataIOBase::_typeID ( T var )

protected

_typeID() [11/16]

template<typename T>

std::enable_if< std::is_floating_point< T >::value >::type clockwerk::DataIOBase::_typeID ( T var )

protected

Overloaded functions to identify type held by DataIO.

Parameters

var	The variable used to identify type

_typeID() [12/16]

void clockwerk::DataIOBase::_typeID ( uint16 var )

protected

_typeID() [13/16]

void clockwerk::DataIOBase::_typeID ( uint32 var )

protected

_typeID() [14/16]

void clockwerk::DataIOBase::_typeID ( uint64 var )

protected

_typeID() [15/16]

void clockwerk::DataIOBase::_typeID ( uint8 var )

protected

_typeID() [16/16]

void clockwerk::DataIOBase::_typeID ( void * var )

protected

allowWrite()

void clockwerk::DataIOBase::allowWrite ( )

inline

Functions to manipulate write permissions on DataIO object.

blockWrite()

void clockwerk::DataIOBase::blockWrite ( )

inline

dataSize()

virtual int clockwerk::DataIOBase::dataSize ( )

inlinevirtual

Get the size of the core data held by the object.

Returns

Size of the data. Negative number for invalid.

Reimplemented in clockwerk::DataIO< T >, clockwerk::DataIO< bool >, clockwerk::DataIO< char * >, clockwerk::DataIO< clockwerk::CartesianVector< 3 > >, clockwerk::DataIO< clockwerk::CartesianVector< 4 > >, clockwerk::DataIO< clockwerk::Matrix< 16, 16 > >, clockwerk::DataIO< clockwerk::Matrix< 3, 3 > >, clockwerk::DataIO< clockwerk::Quaternion >, clockwerk::DataIO< clockwerk::Time >, clockwerk::DataIO< double >, clockwerk::DataIO< floating_point >, clockwerk::DataIO< GraphTreeObject * >, clockwerk::DataIO< int >, clockwerk::DataIO< std::string >, clockwerk::DataIO< uint32 >, clockwerk::DataIO< uint8 >, clockwerk::DataIO< warptwin::Body * >, clockwerk::DataIO< warptwin::Frame * >, and clockwerk::DataIO< warptwin::Node * >.

dataSource()

DataIOBase * clockwerk::DataIOBase::dataSource ( )

inline

Access the target to which the DataIO is mapped.

Returns

Pointer to data source

dataType()

uint8 clockwerk::DataIOBase::dataType ( )

inline

Function to return the type of data held by the DataIO.

Returns

Type of data held by the DataIO according to dataio_types_e

getValueAsString()

virtual int16 clockwerk::DataIOBase::getValueAsString ( char * retval, size_t size )

inlinevirtual

Return the value held by the DataIO object as a string.

Returns

Value held by DataIO as a string

Return the value held by the DataIO object as a string

Returns

Value held by DataIO as a string

Reimplemented in clockwerk::DataIO< T >, clockwerk::DataIO< bool >, clockwerk::DataIO< char * >, clockwerk::DataIO< clockwerk::CartesianVector< 3 > >, clockwerk::DataIO< clockwerk::CartesianVector< 4 > >, clockwerk::DataIO< clockwerk::Matrix< 16, 16 > >, clockwerk::DataIO< clockwerk::Matrix< 3, 3 > >, clockwerk::DataIO< clockwerk::Quaternion >, clockwerk::DataIO< clockwerk::Time >, clockwerk::DataIO< double >, clockwerk::DataIO< floating_point >, clockwerk::DataIO< GraphTreeObject * >, clockwerk::DataIO< int >, clockwerk::DataIO< std::string >, clockwerk::DataIO< uint32 >, clockwerk::DataIO< uint8 >, clockwerk::DataIO< warptwin::Body * >, clockwerk::DataIO< warptwin::Frame * >, and clockwerk::DataIO< warptwin::Node * >.

mapTo()

void clockwerk::DataIOBase::mapTo ( DataIOBase & data_source )

inline

Function to map DataIO object to new upstream data source.

Parameters

data_source

New upstream data source to which object will be mapped

Note

Blocks writing via this DataIO object

read()

void * clockwerk::DataIOBase::read

(

)

const

Function to read value from mapped location – root data or map.

Returns

Void pointer to data held by object

resetMap()

void clockwerk::DataIOBase::resetMap ( )

inline

Parameters

Function

to break data mapping and reset object to its own internal data

Note

Resets write permission to true

setValueFromString()

virtual int16 clockwerk::DataIOBase::setValueFromString ( const char * value )

inlinevirtual

Set the value held by the DataIO object from a string.

Parameters

value

The value to set

Returns

Error code corresponding to success/failure

Reimplemented in clockwerk::DataIO< T >, clockwerk::DataIO< bool >, clockwerk::DataIO< char * >, clockwerk::DataIO< clockwerk::CartesianVector< 3 > >, clockwerk::DataIO< clockwerk::CartesianVector< 4 > >, clockwerk::DataIO< clockwerk::Matrix< 16, 16 > >, clockwerk::DataIO< clockwerk::Matrix< 3, 3 > >, clockwerk::DataIO< clockwerk::Quaternion >, clockwerk::DataIO< clockwerk::Time >, clockwerk::DataIO< double >, clockwerk::DataIO< floating_point >, clockwerk::DataIO< GraphTreeObject * >, clockwerk::DataIO< int >, clockwerk::DataIO< std::string >, clockwerk::DataIO< uint32 >, clockwerk::DataIO< uint8 >, clockwerk::DataIO< warptwin::Body * >, clockwerk::DataIO< warptwin::Frame * >, and clockwerk::DataIO< warptwin::Node * >.

syncExternal()

virtual int16 clockwerk::DataIOBase::syncExternal ( )

inlinevirtual

Synchronize DataIO to some external source – Socket, shared memory, etc.

Returns

Error code corresponding to success/failure

Reimplemented in warptwin::DataIOShmemRelay, and warptwin::DataIOSocketRelay.

writeAllowed()

bool clockwerk::DataIOBase::writeAllowed ( )

inline

writePtr()

void * clockwerk::DataIOBase::writePtr

(

)

Function to write value to mapped location – root data or map.

Returns

Void pointer to data held by object

Member Data Documentation

_data

DataIOBase* clockwerk::DataIOBase::_data

protected

Pointer to data held by the object – by default, this will point internally to _default_data, but can be set to point to another object

_data_ptr

void* clockwerk::DataIOBase::_data_ptr = nullptr

protected

Generic pointer to hold any data type – will be resolved to point to actual object in inherited class

_root

bool clockwerk::DataIOBase::_root

protected

Variable to indicate whether variable in question is root data source or not

_type_id

dataio_types_e clockwerk::DataIOBase::_type_id = UNDEFINED

protected

Variable to store the type of data that the DataIO object is holding. Valid types are documented in the enum and determined at runtime. Runtime determination is necessary because of derived types of GraphTreeObject

_writeAllowed

bool clockwerk::DataIOBase::_writeAllowed

protected

Variable to indicate whether writing is allowed to this variable Set to false upon mapping by default

---

The documentation for this class was generated from the following files:

• /Users/mickey/Documents/Projects/warptwin/warpos/clockwerk/src/architecture/DataIOBase.h
• /Users/mickey/Documents/Projects/warptwin/warpos/clockwerk/src/architecture/DataIOBase.cpp
